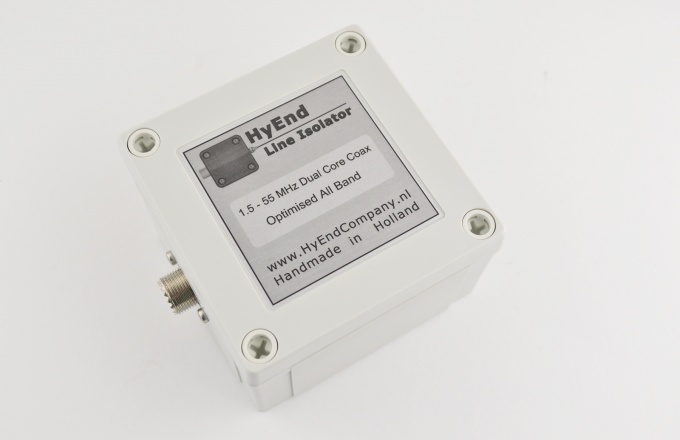

1:1 Current Line Insulator.
A choke should have a minimum attenuation of least 20 dB, for the suppression of return flows.
See the measuring charts.
This Unun has two 2 cores in a stacked configuration.
Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Teflon Connector.
Teflon Coax RG 400.
Frequency, 1.5 to 55 MHz.
Power : 5KW PEP.
All hardware Stainless steel.
Used in conjunction with a 4 Band HyEndFed, fed by approx 22m Coax.
Brought down the Noisefloor about 1-2 S-Units compared to other Line Isolators.
The build quality is outstanding, as with all HyEnd products.
