HyEndFed 5 band antenna for 80,40, 20, 15 and 10 meter.
Max. Power : 100 Watt PEP.
Length : 23 meter.

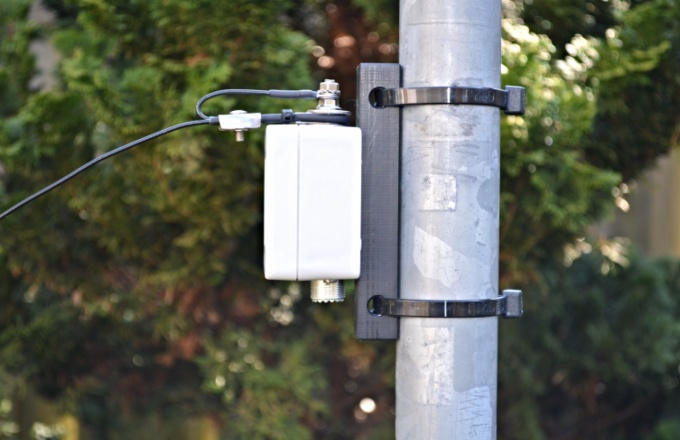

Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Connector : Silverplated.
All hardware Stainless steel.
Only a tuner needed on 80 meter 50KHz up or down from the centre frequentie.
This antenna has a coil in the antenna wire at 20 meter.
Excellent radiation efficiency due resonant design and low loss parts.
4 to 6dB better on 40 as the much shorter 3 band design.
