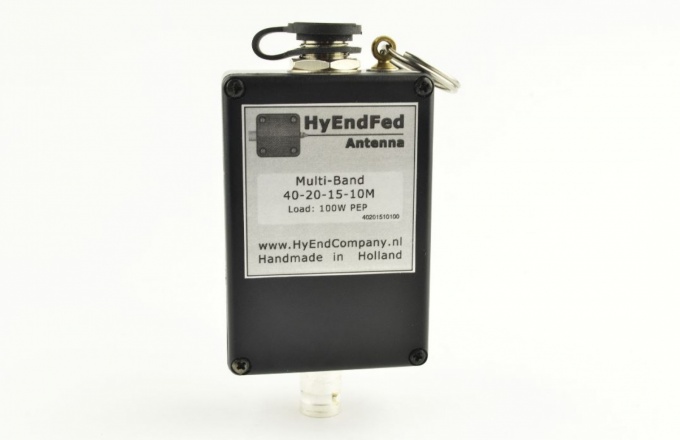

HyEndFed 4 band for 40, 20, 15 and 10 meter.
Max. Power : 100 WATT PEP SSB, 15 WATT DIGITAL.
Length : 20 meter.
Enclosure : ABS IP65
All hardware Stainless steel.
No radials or tuner needed.
This antenna has no coil in the antenna wire
4 to 6db better on 40 as the much shorter 3 band design.
All measurements for this antenna were taken in an open field.
We used 10 meter of coax from the analyzer to the Matching Network box which is also positioned 1 meter above the ground.
The length of the antenna wire to the matching network is 20 meters and connected to a 12,5 meter mast at the top like a sloper.
Antenna wire from hard-drawn copper
32 x 0,203 mm bare
Cross-section of about 1 mm2
Insulation of polyethylene (PE), black
Overall diameter of 2.0 mm
Weight approx 11 g / m
Breaking load approx. 40 kg
I hope you put back into production.
Die ideale Antenne für Unterwegs!
From Germany I got to EW1MM in Belarus with 5 watts QRP using the Xiegu X5105, and made contact with OX0MJ in Copenhagen , Denmark and IZ6WSJ in Italy all with 5 Watts from Germany while visiting from Ireland.
The Antenna is incredibly portable and light.
I took it along while visiting my Mothers with the Kids and strung it up between 2 trees, highest end about 30 feet lowest maybe 15, working in the garden and first time I made contact with AN1WHS on 21.245 Mhz ,1,165 Kms away with my Xiegy X5105 5 watt QRP rig so this Antenna works for sure, very impressed and yes it works perfectly well without radials !
And thanks for the very fast delivery to Ireland !
