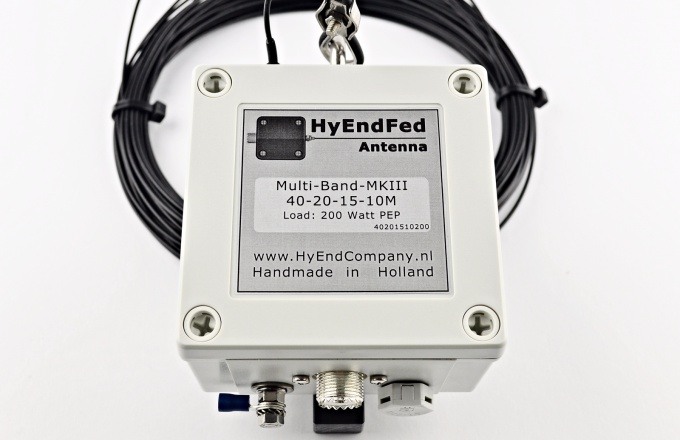

HyEndFed 4 band for 40, 20, 15 and 10 meter.
Max. Power : 200 WATT PEP SSB, 35 WATT DIGITAL.
Length : 20 meter.
Enclosure : Polycarbonate IP67, 100% UV resistant.
SO239 Connector Teflon.
All hardware Stainless steel.
No radials or tuner needed.
This was the antenna I made my first SSB QSO ever! The unit is high quality and well built with good components! I would definitely buy again, highly recommend it!!! 73 KO4OAJ
I build the antenna as a slooper. The Transformator is in 4m high and goes up to 7.5m high. The SWR is better than 1.5 on all bands. With 20m lengh this antenna is also perfekt for small gardens. Clear RECOMMENDATION from me!
Jerry - K4KBL
I must say the quality of the product is without a doubt very good! I would recommended it without thinking.
I was able to reach Slovak Republic, Russia, Florida ( USA), etc with 5/9 or 5/7. ( 100 watts ) from a compromise installation between two houses ( highest point being 20 feets or 6m )
Very impressed! Need to buy another one to use at a second site.
Thanks Ron for your support.
Netjes verpakt en straalt zoals ik gewend ben van jullie een perfecte kwaliteit. Uit
Hyendcompany jullie weten hoe het moet een dikke pluim voor jullie hoe jullie in de markt staan
Werking antenne wederom perfect
In one day QSO with 21 countries, the longest distance being 7300 km with 10 W power and 579 report, with the pole being only 9 meters high.
Great support, I will buy the 8 band antenna for base installation.
Thank you Ron.
Ik heb deze antenne reeds enige maanden in gebruik en werkt echt fantastisch. vanaf de nok op 8m hoogte naar de heavy duty mast van 10m horizontaal weggespannen. nogmaals dank voor de goede levering. Eric ON3ERN
I have a very small lot size, not compatible of installing a traditional dipole antenna outdoors. So after several unsuccessful and frustrating attempts to get a folded dipole and a mag loop to work in the attic, I researched alternatives. Ron’s Hyendfed box was at the top of reviews and I must say that all reports describing his outstanding level of customer service is accurate. Ron answered all questions and within a day. I ordered the 4 band, 200W unit and it arrived in California in 10 calendar days from ordering. The unit is obviously handmade and very high quality. The initial installation was at a slope from 7.6 meters to 3.6 meters and I was able to make work contacts from California to Maine (4230Km) on 40m SSB using 100W with no tuner! I moved the end to a “better” location to a height of 6 meters and the results were the same. Contacts were made in South Carolina (3480Km) and Pennsylvania (3500 Km) in spite of poor band conditions. This antenna works. If it weren’t for this design, I wouldn’t be able to work the HF bands. Don’t hesitate to give this product a try. Thank you, Hyendfed, for getting me on the air. -73, KK6PVS
I bought the 4 band antenna directly from this website and it arrived with me in Northern Ireland within 5 working days. The email support from Ron was excellent. The antenna arrived very well packaged and the quality of workmanship is superb. I have the antenna installed on my TV pole at 30ft fed with Aircell 7 coax in a horizontal configuration. It is connected to a Yaesu FT450D and without the internal tuner the antenna SWR on 40/20/15 and 10 is 1.5 or better. The internal ATU brings this down to 1.1 easily. If like me you have limited space then this antenna is perfect. And no TVI !
Zie mijn review bij de 3 band uitvoering. Ik heb hier nu 20 meter DX-wire zonder de spoel aan hangen en daardoor werkt de antenne nu nog beter. Een uistekende antenne en ik ben er zeer tevreden over. Zeker een aanrader voor mensen die met wat minder ruimte zitten.
