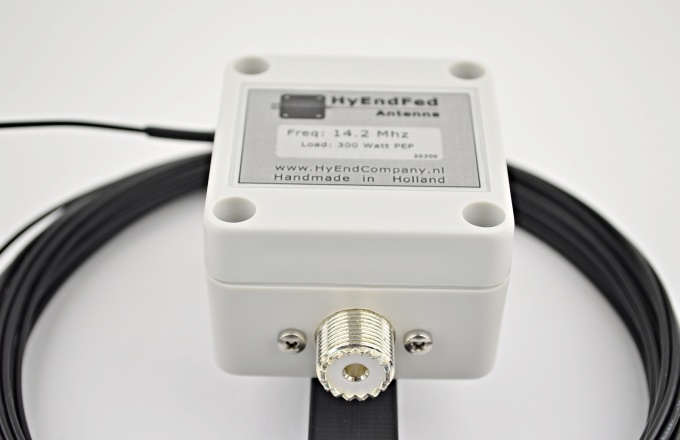

Frequency: 14 MHz band
1,5:1 VSWR bandwidth: 300 KHz (+/-)
Maximum power:300 Watt PEP, SSB
75 Watt Digital
Length: 10,0 meters
Working principle: LC matching network with airwound coil
Materials: stainless steel
Enclosure, Polycarbonaat IP 67
Teflon SO239 socket
Hard copper Antenna litze, breaking limit 40kg
End Insulator: Polycarbonate UV resistant
I am in an HOA community so have antenna restrictions. This slopes down from my second floor balcony rail (around 14ft) down to my back fence (around 6.6 ft) and I have made contacts in 12 countries and every state in the USA from Arizona. Average SWR is 1.2:1/1.3:1 across the band.
The antenna is of quality construction. It is most resonant at 14.2 MHZ just as its associated chart states. Using my auto tuner this antenna will load easily with minimal SWR readings across the entire 20 meter band.
Thanks to HyEndFed for a very efficient antenna system.
Jan CT1KCL (Ex PA2JJC)
I got my new 20 meters half wave yesterday. Today went to try even if propagation wasn 't good!I can 't believe how well the antenna runs (only radio power)!Contacted all Europe around without no problems with 5/9 in a rang of about 5000 Km! Contacted W6CCP with report 5/4! But the amazing think is that He told me that He runs by long path!!!!I 've never contacted California before! let alon by long path!!!!!!Probably propagation helped me, but one thing is clear, the antenna runs well!!!!!!!TNX HY END COMPANY )
