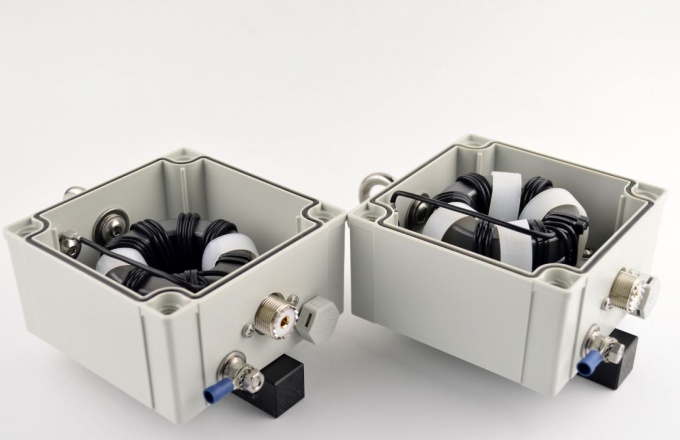

Power 1.5 KW CW
For non-resonant antenna
2 stacked cores
Conductor: Multistrand silver-plated copper.
Insulation: Teflon (PTFE).
AWG 14, conductor 19 x 0,361mm, 1,941square mm.
Enclosure: Polycarbonate IP67, 100% UV resistant.
SO239 Teflon Connector.
All Stainless steel hardware.
With a vent plug.
EQUALIZING PRESSURE USING MEMBRANE VENTS IMPROVES ENCLOSURE SEAL PERFORMANCE
protect seals on sensitive electronics against water, dust, dirt and liquids with rapid pressure equalization.
block contaminants such as dirt, dust or salts in changing environmental conditions.
rapidly equalize pressure also helps virtually eliminate condensation and reduce housing design complexity.
